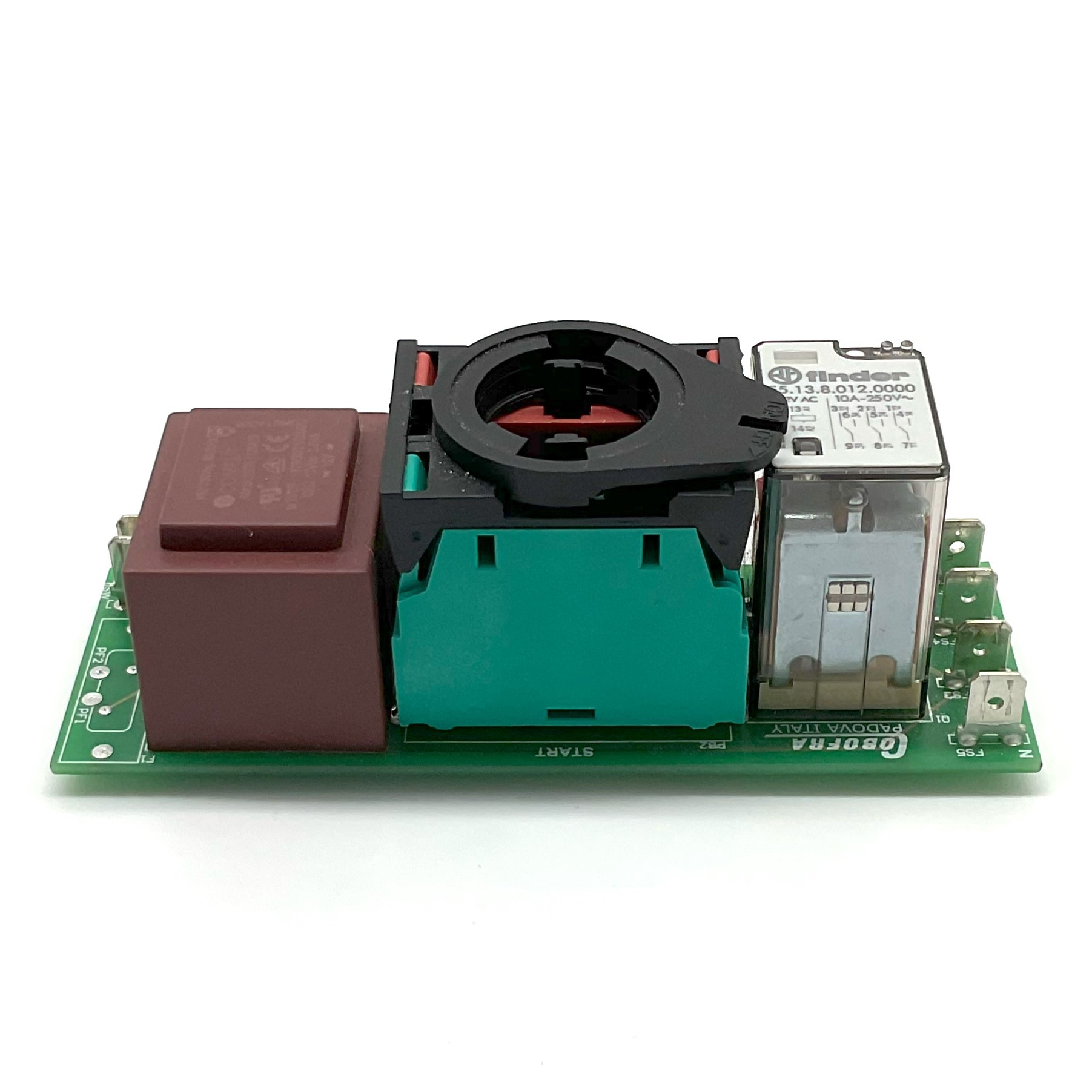

Electronic board COB2407

On-Off electronic board maximum 0.55kW for managing equipment with single-phase 230VAC 1-direction of travel motor. It is complete with a protection interlock in the event of mains failure and a 12V printed circuit board. The board can be controlled by digital input, pushbuttons or electromechanical drives and has a 24VDC output to power a mains presence or operation light. It is equipped with micro switch and motor thermal consensus that can be excluded with a simple setting.
Request info Download sheet

Dati tecnici

  • Board technology
    On-Off relay
  • Input voltage
    Single-phase 230VAC
  • Output 1
    For single-phase 230VAC motor - max 0.55kW
  • Output 2
    24VDC
  • Output 3
    /
  • Output 4
    /
  • Micro contact 1
    Yes
  • Micro contact 2
    /
  • Thermal motor contact
    Yes
  • Electromechanical push-button controls
    Yes
  • Light signals
    Yes
  • Sensors
    Optional
  • Serial 485
    No
  • Connecting electronic controls
    No
  • Remote control technology
    No
  • BT/Wi-Fi Technology
    No
  • Operating temperature
    +0° +50°
  • Product size
    114x38 mm
  • Conformity
    CE

Field of application:

Slicers
Slicers household
Pasta die
Tomato passer
